CONFIGURABLE FLIGHT SIMULATION PLATFORM
DTS100 Motion Simulator
4DOF300 mm travelSTEM

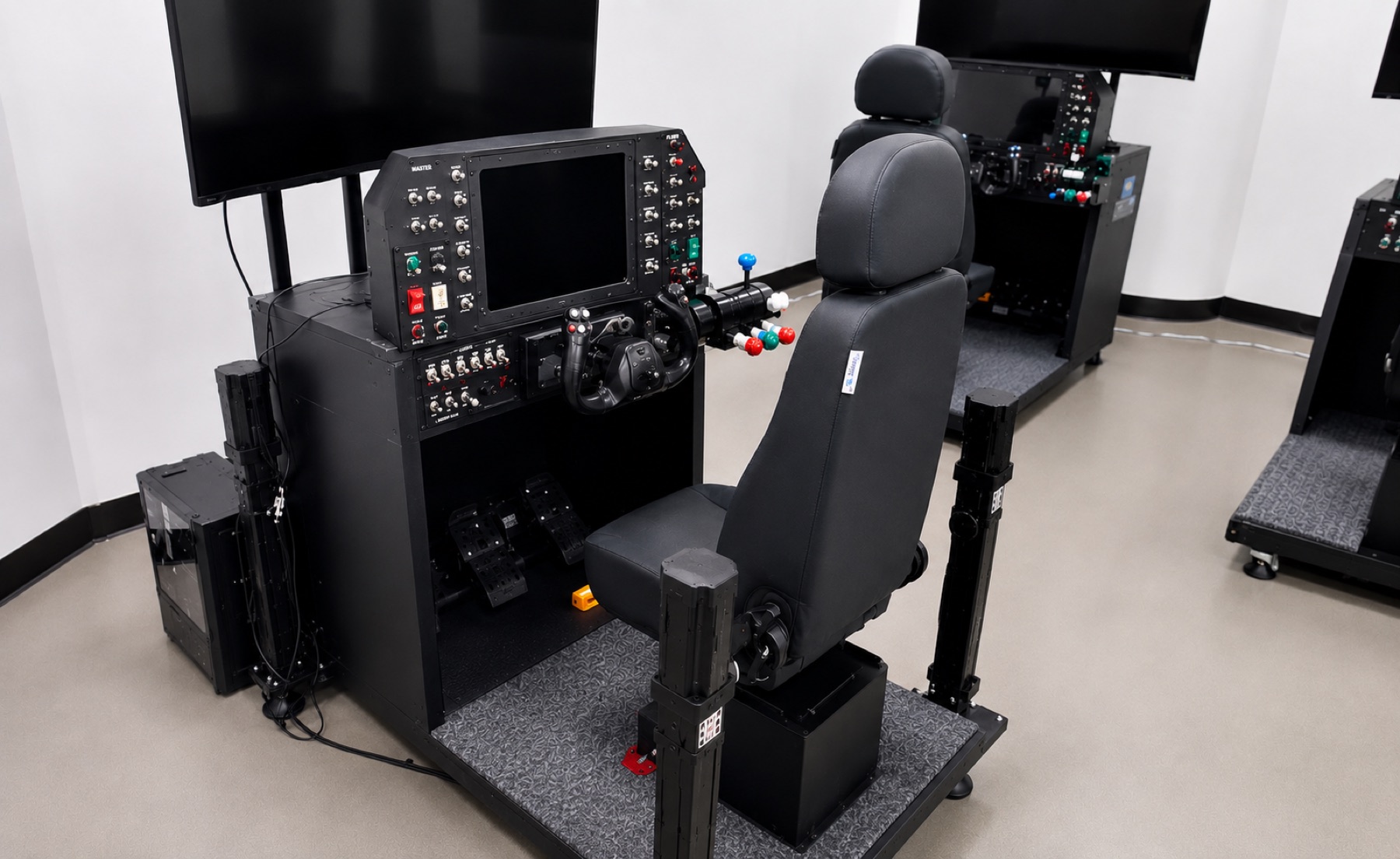

An advanced motion version of the DTS100 platform using four electric actuators, a belted pilot seat and emergency-stop protection. It recreates pitch, roll, turbulence, taxi vibration and landing impact in a compact integrated system.
Request project configuration↓SYSTEM ARCHITECTURE
System specifications
01
Motion system
4-actuator02
Visual system
Integrated display03
Typical footprint
Compact04
Typical lead time
30 daysPRODUCT OVERVIEW
Product overview
An advanced motion version of the DTS100 platform using four electric actuators, a belted pilot seat and emergency-stop protection. It recreates pitch, roll, turbulence, taxi vibration and landing impact in a compact integrated system.
With up to 300 mm of motion travel, approximately ±15° pitch, ±18° roll and response speed up to 200 mm/s, the platform delivers clearly perceptible dynamic cues while retaining a small integrated footprint. It is suited to aviation colleges, STEM centers, science museums, flight-experience venues and pilot-recruitment programs that need a safe and engaging motion experience.
Main features
01Four-axis electric motion platform
02300 mm motion travel with pitch, roll and yaw cues
03Turbulence, taxi vibration and landing-impact cues
04Emergency-stop safety protection
05Integrated pilot seat with safety belt
06Support for multiple aircraft configurations
APPLICATION FIT
Applications & environments
PROJECT INQUIRY
Request a project proposal
Send the basic project information below. Your email application will open with a prepared message to Ms. Lin.
What to prepare for a useful quotation
A project quotation is faster and more accurate when the inquiry includes the mission, site and delivery context—not only the aircraft name.
- Target aircraft or cockpit type
- Training, education or public-experience purpose
- Available room size and ceiling height
- Fixed-base, 4DOF or 6DOF motion preference
- Destination country and expected schedule
